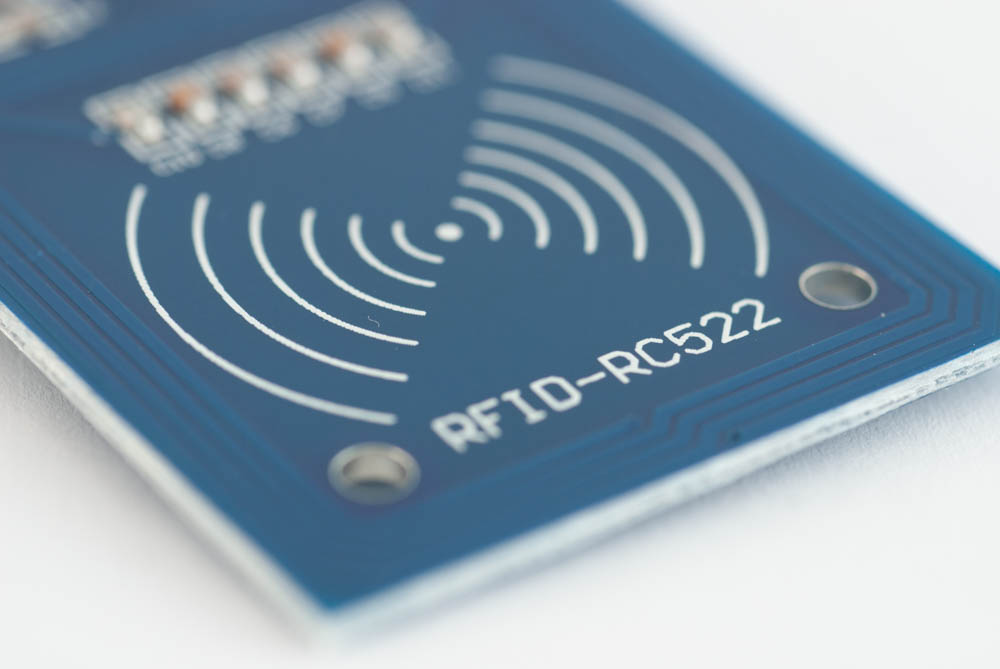

RFID RC522 board and tags
The RFID-RC522 module is a versatile and reliable component perfect for your RFID-based projects. Featuring a highly integrated MF RC522 chip, this module operates at 13.56MHz and supports 14443A compatible transponder signals, ensuring seamless contactless communication. With fast data transfer rates of up to 424kbit/s and an easy-to-use SPI interface, it’s ideal for both beginners and advanced users.
The module includes a standard S50 blank card and a keychain shape, making it convenient for various applications like access control systems and smart cards. Compact, low-cost, and efficient, the RFID-RC522 module is an essential addition to any maker’s toolkit.
$8.95
In stock
Product Details
I’ve used this board for many years in numerous projects, and it’s consistently reliable and versatile. It’s an excellent choice for fun RFID-based projects—check out the images to see some examples!
Key Features of the RFID-RC522 Module:
- Includes: A standard S50 blank card and a keychain shape for easy integration.
- High Integration: The MF RC522 chip is designed for 13.56MHz contactless communication, offering a low-voltage, cost-effective, and compact solution.
- Advanced Communication: It supports various passive contactless communication methods and protocols, specifically 14443A compatible transponder signals.
- High-Speed Data Transfer: Enjoy fast, two-way data transfer rates up to 424kbit/s, making your projects responsive and efficient.
- Easy to Use: The original reader circuit chip design is straightforward and affordable, perfect for developing advanced applications or RF card terminals.
A project with the RFID reader, activating the colored RGB pixels!
Specifications:
- Voltage: Operates at 3.3V, suitable for Arduino-based boards via the SPI interface.
- Current Consumption:
- Active: 13-26mA / DC 3.3V
- Idle: 10-13mA / DC 3.3V
- Sleep: <80uA
- Peak: <30mA
- Operating Frequency: 13.56MHz
- Dimensions: 40mm x 60mm
- Temperature Range:
- Operating: -20 to 80 degrees Celsius
- Storage: -40 to 85 degrees Celsius
- SPI Interface Parameters: Maximum data transfer rate of 10Mbit/s
This module is also included in some of our kits, providing you with all the components you need to get started right away.
Why Choose This RFID-RC522 Module?
This board is perfect for a wide range of applications, from DIY projects to advanced developments. Its ease of use, coupled with its robust performance, makes it a favorite among makers. Whether you’re creating access control systems, smart cards, or any other RFID-based project, this module provides a reliable and efficient solution.
Don’t miss out on adding this versatile and powerful tool to your electronics arsenal. Purchase today and elevate your projects to the next level!
(Note: The projects shown in the images are not included with this purchase.)
We also sell a mini RFID reader too!
